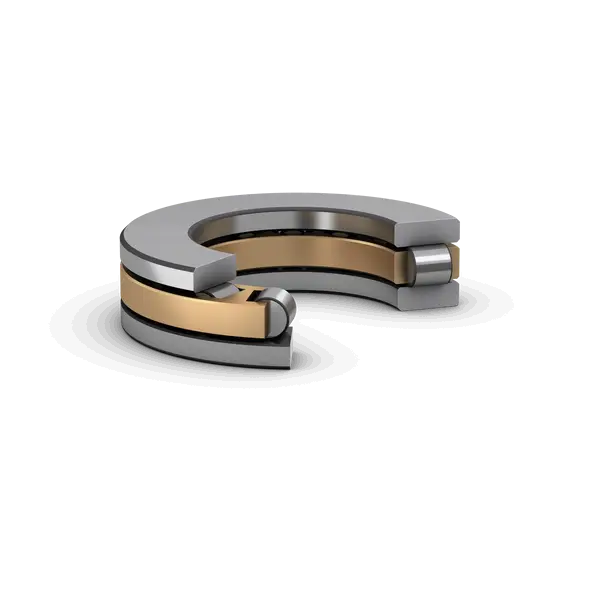

SKF 81136 M
Single row cylindrical roller thrust bearing, single direction
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
180.0 mm
Bore diameter
D
225.0 mm
Outside diameter
H
34.0 mm
Height
d1
222.0 mm
Outside diameter shaft washer
D1
183.0 mm
Bore diameter housing washer
B
10.0 mm
Height shaft washer
r1,2
1.1 mm
Chamfer dimension housing washer
mass
3.14 kg
Product net weight
