SKF 812/800 M

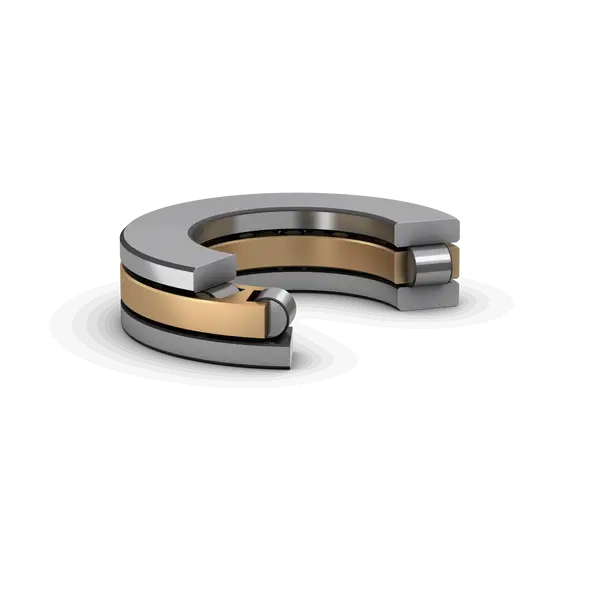

Single row cylindrical roller thrust bearing, single direction
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
800.0 mm
Bore diameter
D
1060.0 mm
Outside diameter
H
205.0 mm
Height
d1
1055.0 mm
Outside diameter shaft washer
D1
805.0 mm
Bore diameter housing washer
B
60.0 mm
Height shaft washer
r1,2
7.5 mm
Chamfer dimension housing washer
