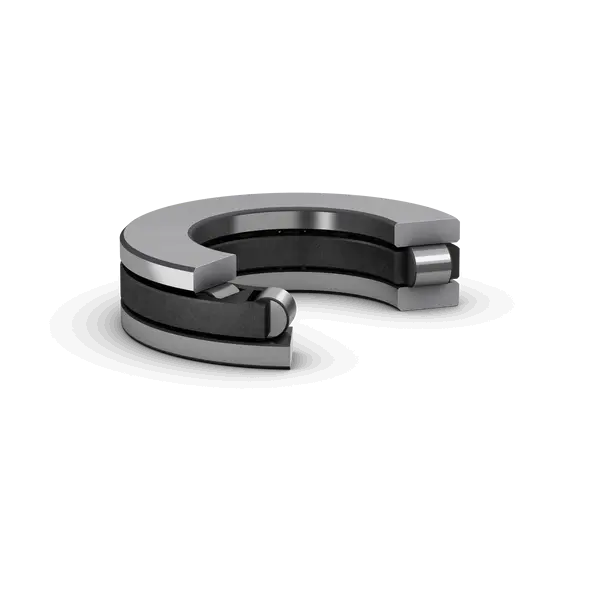

SKF 81218 TN
Single row cylindrical roller thrust bearing, single direction
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
90.0 mm
Bore diameter
D
135.0 mm
Outside diameter
H
35.0 mm
Height
d1
135.0 mm
Outside diameter shaft washer
D1
93.0 mm
Bore diameter housing washer
B
10.5 mm
Height shaft washer
r1,2
1.1 mm
Chamfer dimension housing washer
mass
1.77 kg
Product net weight
