SKF 81276 M

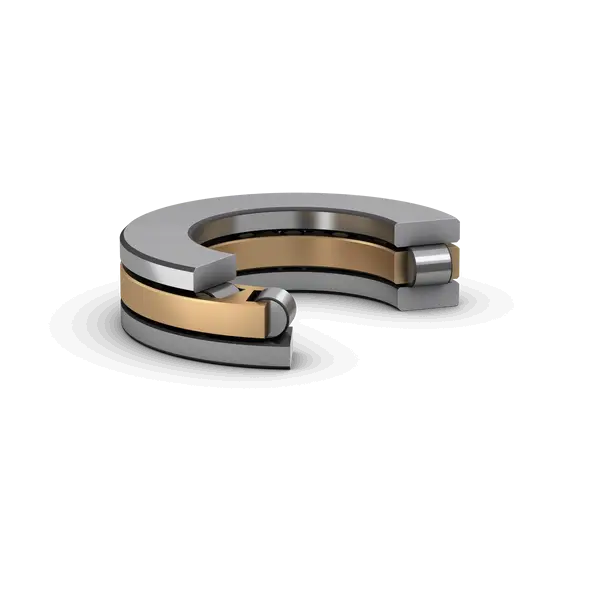

Single row cylindrical roller thrust bearing, single direction
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
380.0 mm
Bore diameter
D
520.0 mm
Outside diameter
H
112.0 mm
Height
d1
515.0 mm
Outside diameter shaft washer
D1
385.0 mm
Bore diameter housing washer
B
33.5 mm
Height shaft washer
r1,2
4.0 mm
Chamfer dimension housing washer
mass
70.0 kg
Product net weight
