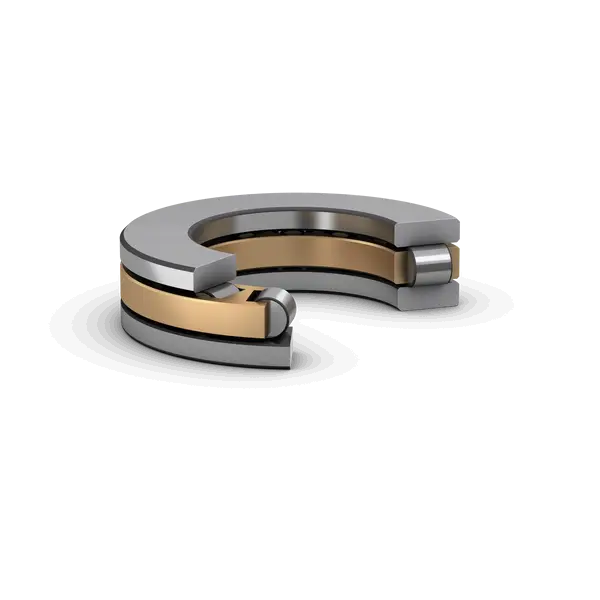

SKF 89180 M
Single row cylindrical roller thrust bearing, single direction
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
400.0 mm
Bore diameter
D
480.0 mm
Outside diameter
H
48.0 mm
Height
d1
477.0 mm
Outside diameter shaft washer
D1
403.0 mm
Bore diameter housing washer
B
14.0 mm
Height shaft washer
r1,2
2.0 mm
Chamfer dimension housing washer
