SKF 89324 M

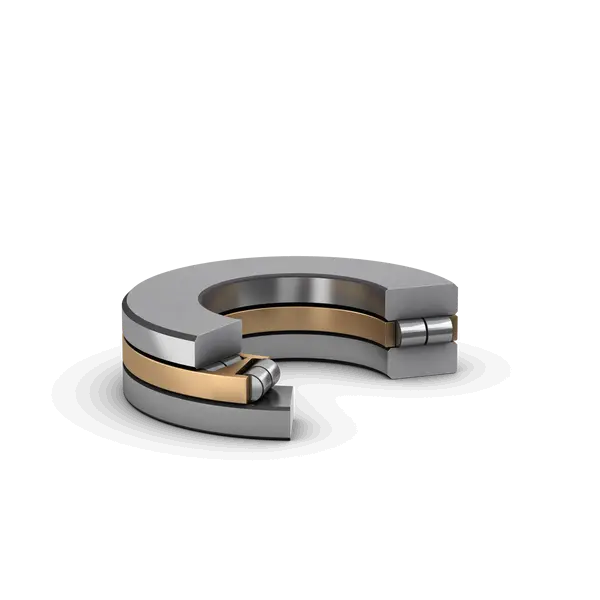

Double row cylindrical roller thrust bearing, single direction
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
210.0 mm
Outside diameter
H
54.0 mm
Height
Dw
17.0 mm
Diameter roller
d1
210.0 mm
Outside diameter shaft washer
D1
123.0 mm
Bore diameter housing washer
B
18.5 mm
Height shaft washer
r1,2
2.1 mm
Chamfer dimension housing washer
mass
8.87 kg
Product net weight
