SKF 89416 M

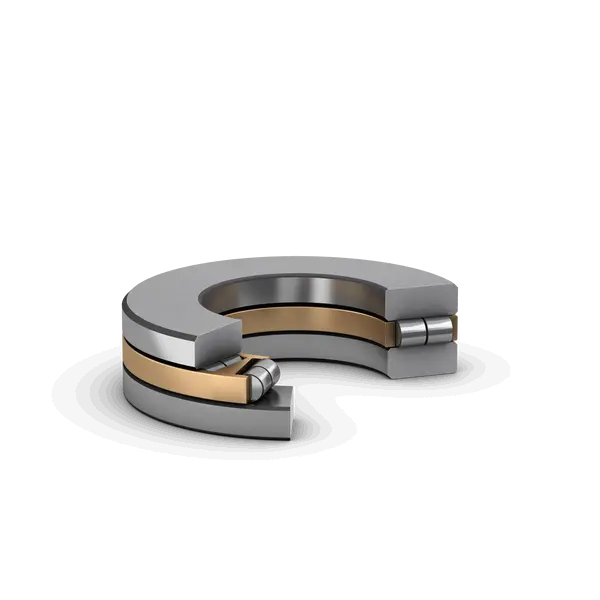

89416 M SKF Cylindrical Roller Thrust Bearing

The 89416 M is an SKF bearing in the cylindrical roller thrust bearings product series. The supplied product data identifies it as a double row cylindrical roller thrust bearing with a single direction design.

What type of bearing is the 89416 M?

The 89416 M is listed as a double row, single direction cylindrical roller thrust bearing under the SKF brand and roller bearing category path.

89416 M Dimensions and Product Data

• Bore diameter (d): 80.0 mm
• Outside diameter (D): 170.0 mm
• Height (H): 54.0 mm
• Shaft washer outside diameter (d1): 170.0 mm
• Housing washer bore diameter (D1): 83.0 mm
• Shaft washer height (B): 18.0 mm
• Housing washer chamfer dimension (r1,2): 2.1 mm
• Product net weight: 7.04 kg

What are the basic boundary dimensions?

The supplied dimensions list an 80.0 mm bore, 170.0 mm outside diameter, and 54.0 mm overall height for the 89416 M.

89416 M Performance Figures

The provided technical data also includes a value of 440.0 kN and a speed-related value of 1800.0 r/min. Because their exact field labels are not supplied, these figures should be verified against the relevant SKF technical documentation before selection or installation.

What additional numerical data is provided?

In addition to dimensions and mass, the product data records 440.0 kN and 1800.0 r/min. No further designation for these values is supplied, so they are presented without additional interpretation.
