SKF 99060

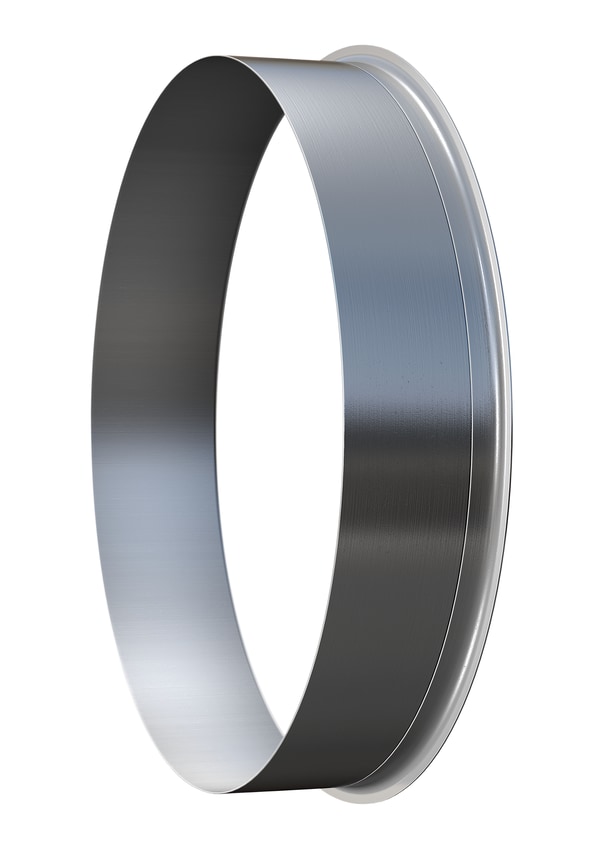

SKF Speedi-Sleeve
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d1
17.37 mm
Nominal bore diameter
D
22.86 mm
Nominal outside diameter
b
11.13 mm
Nominal width
b1
7.95 mm
Nominal width of plain sleeve (up to flange groove)
B
50.8 mm
Installation distance
r
3.18 mm
Bushing radius (chamfer) between bore and side face
t
0.25 mm
Nominal thickness
mass
0.0191 kg
Product net weight
