SKF 99083

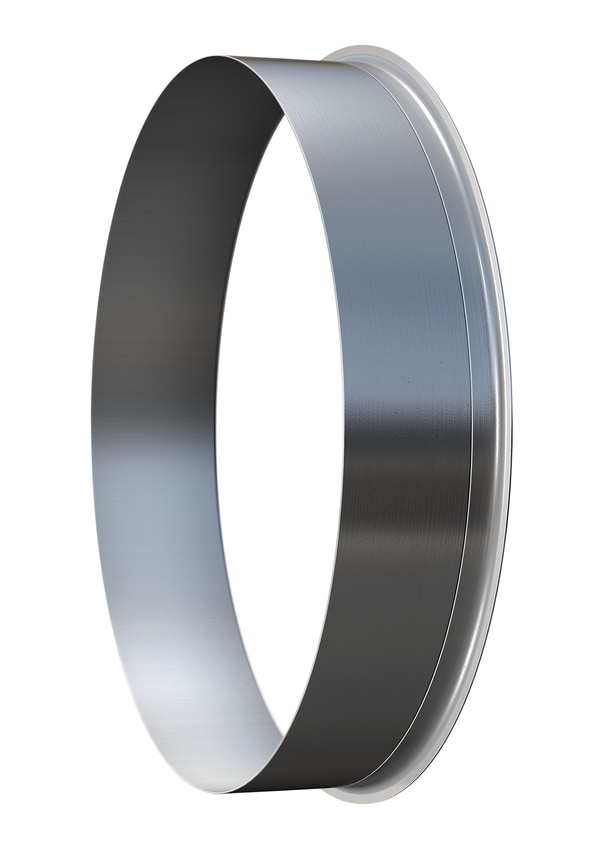

SKF Speedi-Sleeve
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d1
20.65 mm
Nominal bore diameter
D
30.18 mm
Nominal outside diameter
b
14.3 mm
Nominal width
b1
9.53 mm
Nominal width of plain sleeve (up to flange groove)
B
76.2 mm
Installation distance
r
3.18 mm
Bushing radius (chamfer) between bore and side face
t
0.25 mm
Nominal thickness
mass
0.0222 kg
Product net weight
