SKF 99260

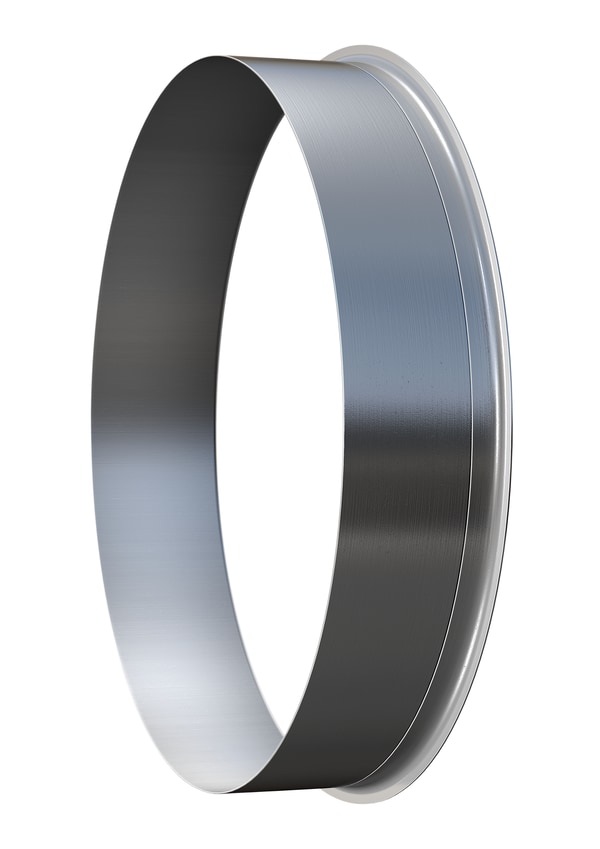

SKF Speedi-Sleeve
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
66.68 mm
Nominal bore diameter
D
77.39 mm
Nominal outside diameter
b
15.88 mm
Nominal width
b1
12.7 mm
Nominal width of plain sleeve (up to flange groove)
B
34.93 mm
Installation distance
r
3.18 mm
Bushing radius (chamfer) between bore and side face
t
0.25 mm
Nominal thickness
mass
0.0812 kg
Product net weight
