SKF 99501

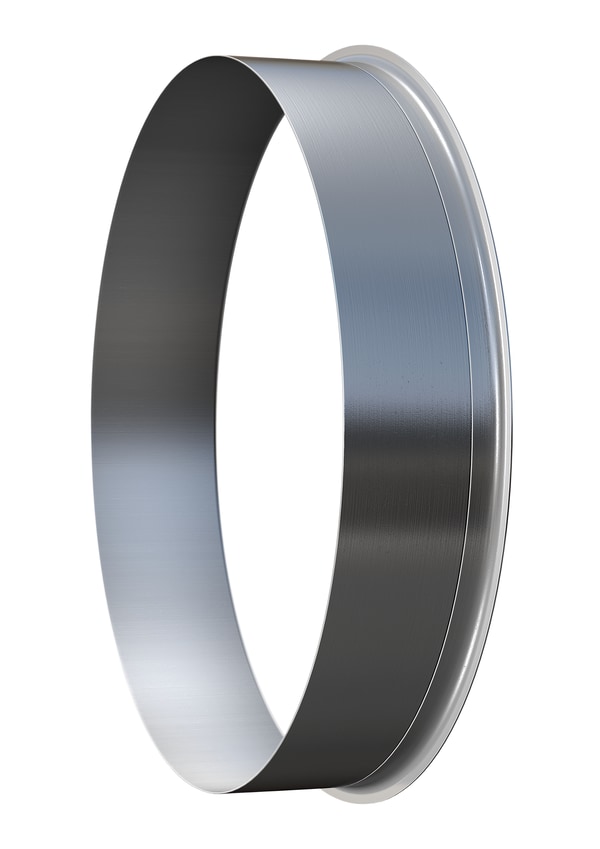

SKF Speedi-Sleeve
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d1
127.0 mm
Nominal bore diameter
D
137.16 mm
Nominal outside diameter
b
17.3 mm
Nominal width
b1
13.72 mm
Nominal width of plain sleeve (up to flange groove)
B
36.53 mm
Installation distance
r
3.18 mm
Bushing radius (chamfer) between bore and side face
t
0.25 mm
Nominal thickness
mass
0.23 kg
Product net weight
