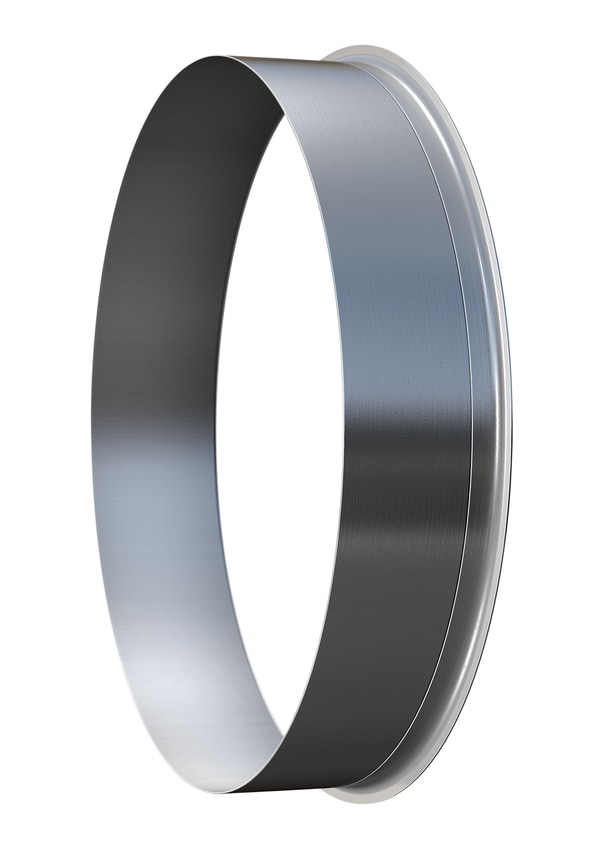

SKF 99775
SKF Speedi-Sleeve
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d1
196.85 mm
Nominal bore diameter
D
210.06 mm
Nominal outside diameter
b
33.35 mm
Nominal width
b1
25.4 mm
Nominal width of plain sleeve (up to flange groove)
B
47.63 mm
Installation distance
r
3.18 mm
Bushing radius (chamfer) between bore and side face
t
0.25 mm
Nominal thickness
mass
0.539 kg
Product net weight
