SKF 99846

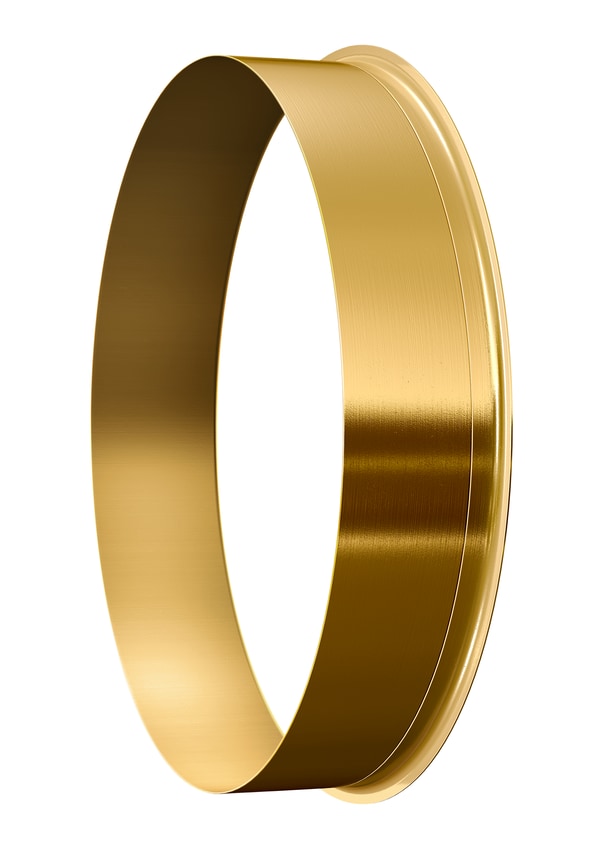

SKF Speedi-Sleeve
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
73.03 mm
Nominal bore diameter
D
81.76 mm
Nominal outside diameter
b
23.83 mm
Nominal width
b1
19.84 mm
Nominal width of plain sleeve (up to flange groove)
B
31.75 mm
Installation distance
r
3.18 mm
Bushing radius (chamfer) between bore and side face
t
0.25 mm
Nominal thickness
mass
0.132 kg
Product net weight
