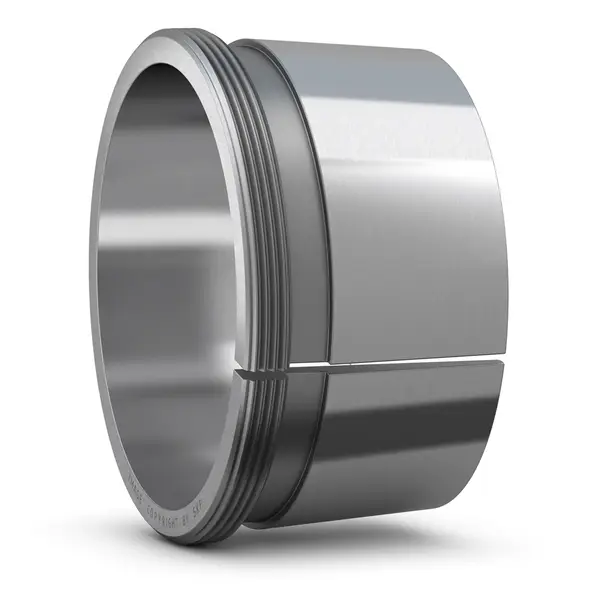

SKF AH 24040
Withdrawal sleeve, basic design, ISO standards
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
190.0 mm
Bore diameter
d
200.0 mm
Outside diameter small taper
B1
127.0 mm
Width
B2
140.0 mm
Width sleeve and bearing before sleeve is driven into bore
G
Tr 210x4
Thread
G1
18.0 mm
Length thread
mass
3.56 kg
Product net weight
