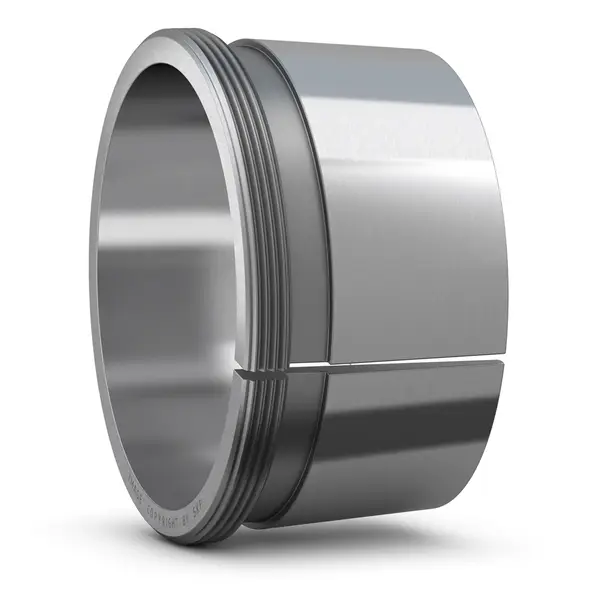

SKF AH 24122
Withdrawal sleeve, basic design, ISO standards
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
105.0 mm
Bore diameter
d
110.0 mm
Outside diameter small taper
B1
82.0 mm
Width
B2
91.0 mm
Width sleeve and bearing before sleeve is driven into bore
G
M115x2
Thread
G1
13.0 mm
Length thread
mass
0.73 kg
Product net weight
