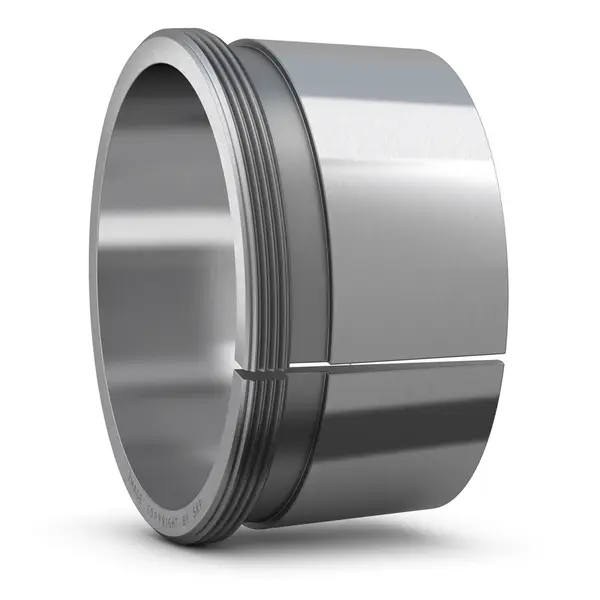

SKF AH 24132
Withdrawal sleeve, basic design, ISO standards
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
150.0 mm
Bore diameter
d
160.0 mm
Outside diameter small taper
B1
124.0 mm
Width
B2
135.0 mm
Width sleeve and bearing before sleeve is driven into bore
G
M170x3
Thread
G1
15.0 mm
Length thread
mass
3.03 kg
Product net weight
