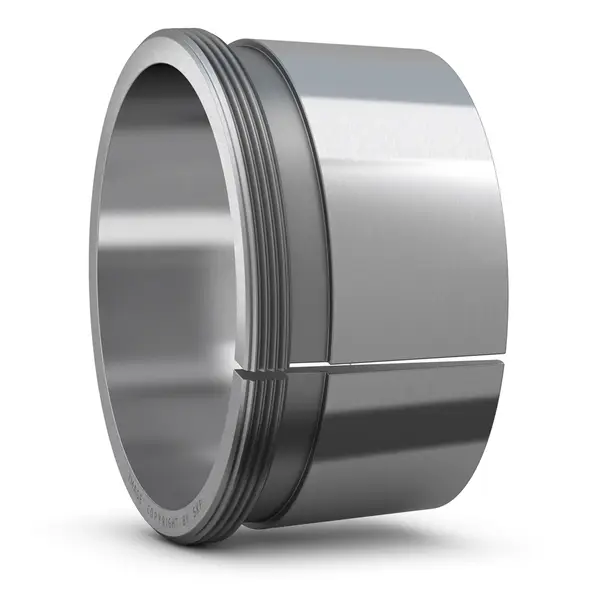

SKF AHX 2317
Withdrawal sleeve, basic design, ISO standards
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
80.0 mm
Bore diameter
d
85.0 mm
Outside diameter small taper
B1
74.0 mm
Width
B2
78.0 mm
Width sleeve and bearing before sleeve is driven into bore
G
M95x2
Thread
G1
13.0 mm
Length thread
mass
0.653 kg
Product net weight
