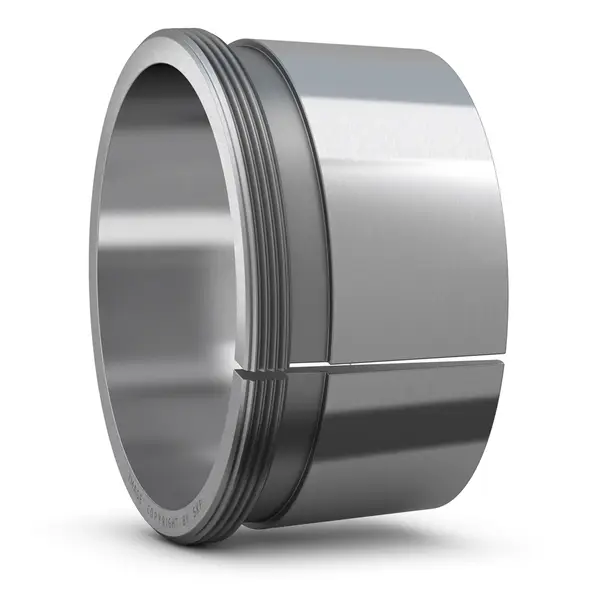

SKF AHX 2319
Withdrawal sleeve, basic design, ISO standards
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
90.0 mm
Bore diameter
d
95.0 mm
Outside diameter small taper
B1
85.0 mm
Width
B2
89.0 mm
Width sleeve and bearing before sleeve is driven into bore
G
M105x2
Thread
G1
16.0 mm
Length thread
mass
0.906 kg
Product net weight
