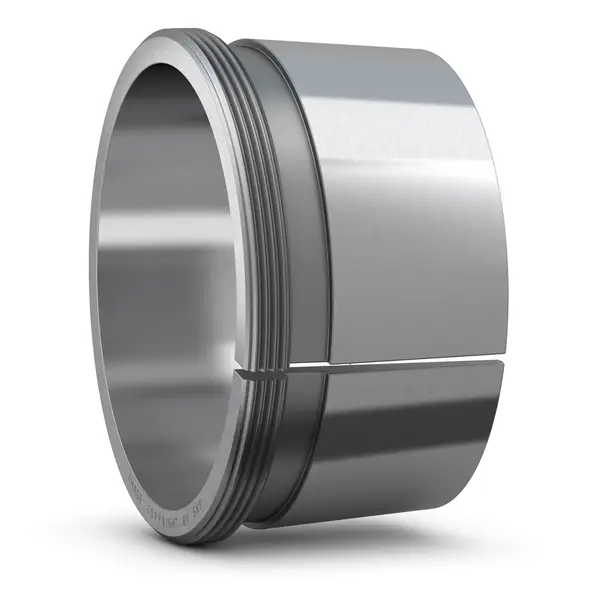

SKF AHX 3024
Withdrawal sleeve, basic design, ISO standards
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
115.0 mm
Bore diameter
d
120.0 mm
Outside diameter small taper
B1
60.0 mm
Width
B2
64.0 mm
Width sleeve and bearing before sleeve is driven into bore
G
M130x2
Thread
G1
13.0 mm
Length thread
mass
0.73 kg
Product net weight
