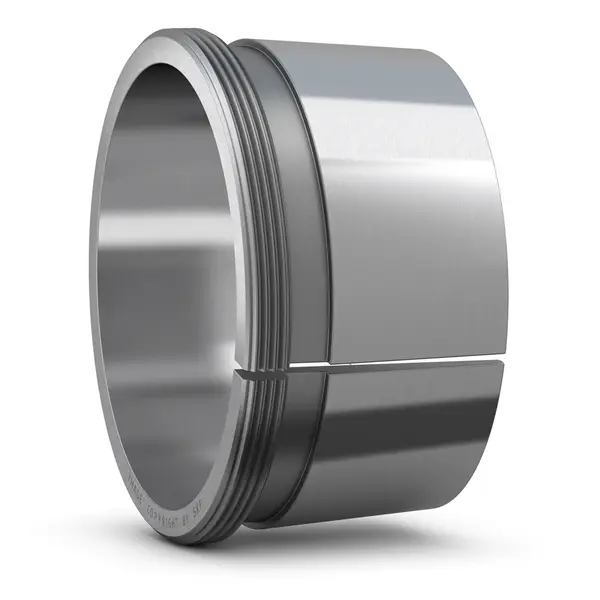

SKF AHX 3026
Withdrawal sleeve, basic design, ISO standards
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
125.0 mm
Bore diameter
d
130.0 mm
Outside diameter small taper
B1
67.0 mm
Width
B2
71.0 mm
Width sleeve and bearing before sleeve is driven into bore
G
M140x2
Thread
G1
14.0 mm
Length thread
mass
0.91 kg
Product net weight
