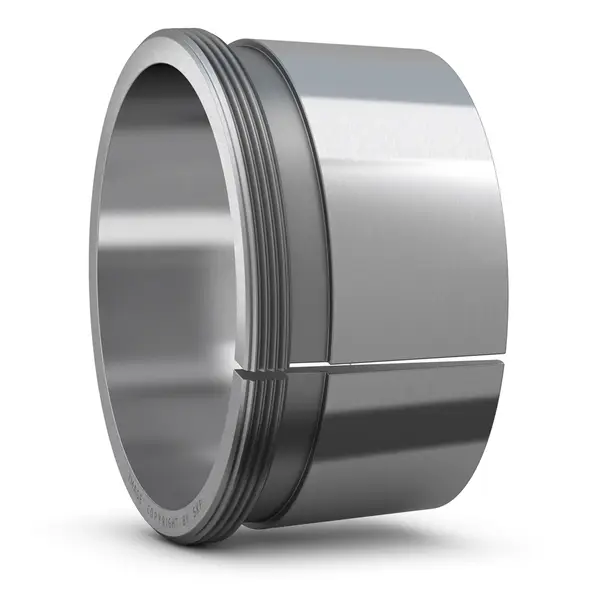

SKF AHX 318
Withdrawal sleeve, basic design, ISO standards
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
85.0 mm
Bore diameter
d
90.0 mm
Outside diameter small taper
B1
53.0 mm
Width
B2
57.0 mm
Width sleeve and bearing before sleeve is driven into bore
G
M100x2
Thread
G1
9.0 mm
Length thread
mass
0.448 kg
Product net weight
