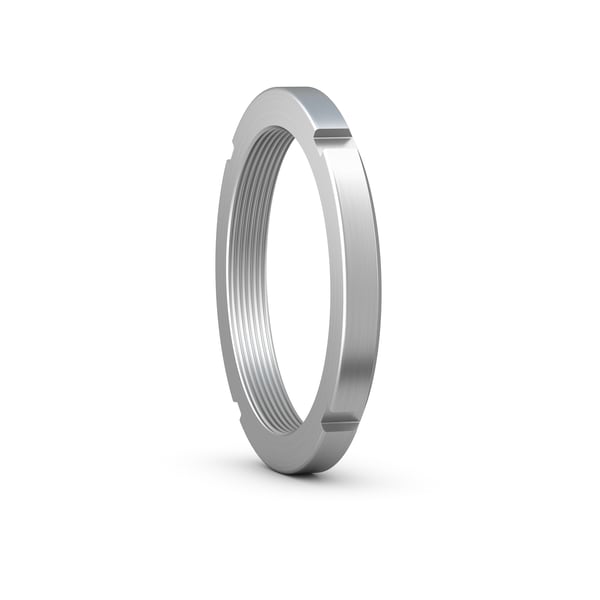

SKF AN 15
Lock nut with inch thread, for locking by lock washer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
74.498 mm
Thread diameter
d1
90.5 mm
Diameter locating side face
d3
98.552 mm
Outside diameter
B
15.342 mm
Width
b
9.144 mm
Width locating slot
h
3.429 mm
Depth locating slot
mass
0.357 kg
Product net weight
