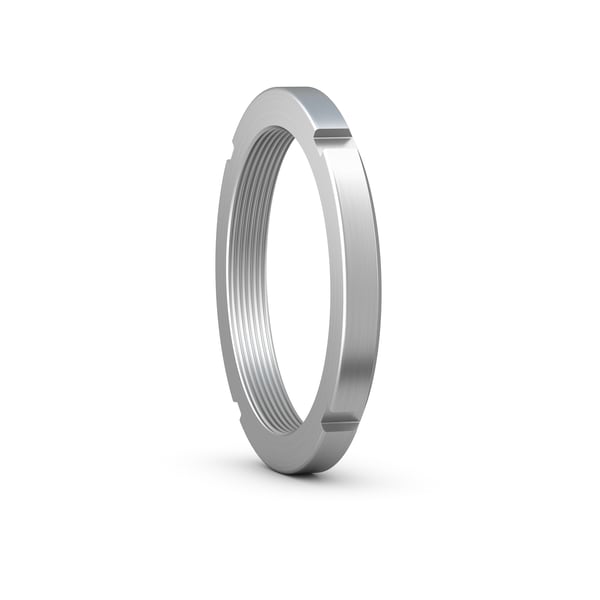

SKF AN 18
Lock nut with inch thread, for locking by lock washer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
89.586 mm
Thread diameter
d1
108.737 mm
Diameter locating side face
d3
118.389 mm
Outside diameter
B
17.729 mm
Width
b
9.144 mm
Width locating slot
h
4.216 mm
Depth locating slot
mass
0.533 kg
Product net weight
