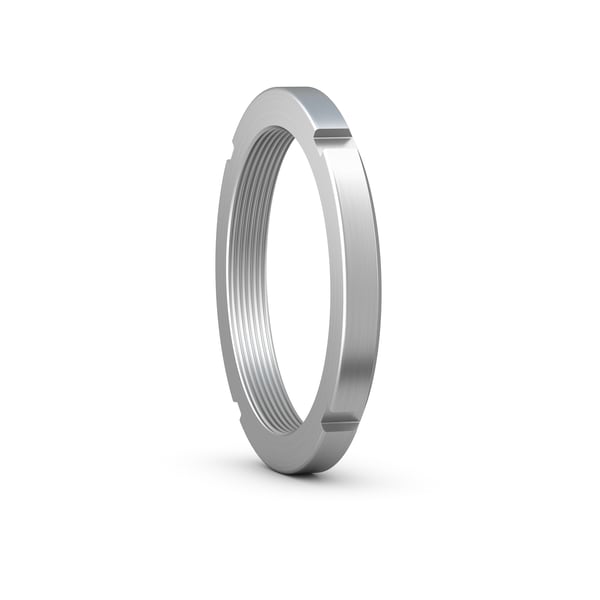

SKF AN 22
Lock nut with inch thread, for locking by lock washer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
109.855 mm
Thread diameter
d1
134.137 mm
Diameter locating side face
d3
145.39 mm
Outside diameter
B
20.091 mm
Width
b
12.319 mm
Width locating slot
h
5.029 mm
Depth locating slot
mass
0.978 kg
Product net weight
