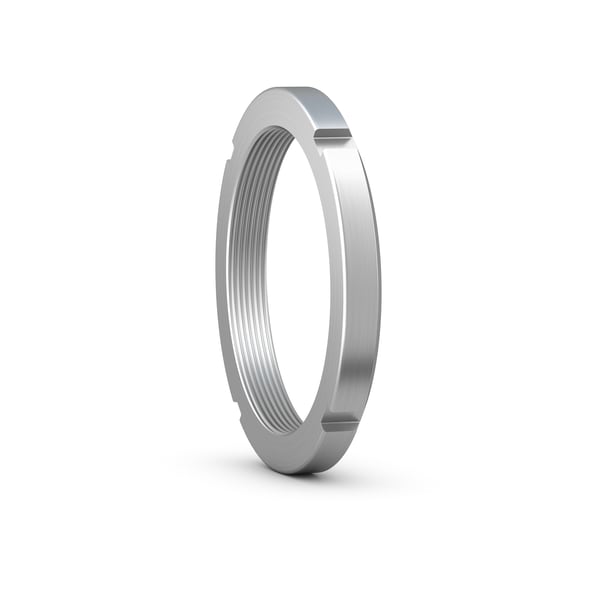

SKF AN 24
Lock nut with inch thread, for locking by lock washer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
119.786 mm
Thread diameter
d1
144.475 mm
Diameter locating side face
d3
155.702 mm
Outside diameter
B
20.904 mm
Width
b
12.319 mm
Width locating slot
h
5.029 mm
Depth locating slot
mass
1.06 kg
Product net weight
