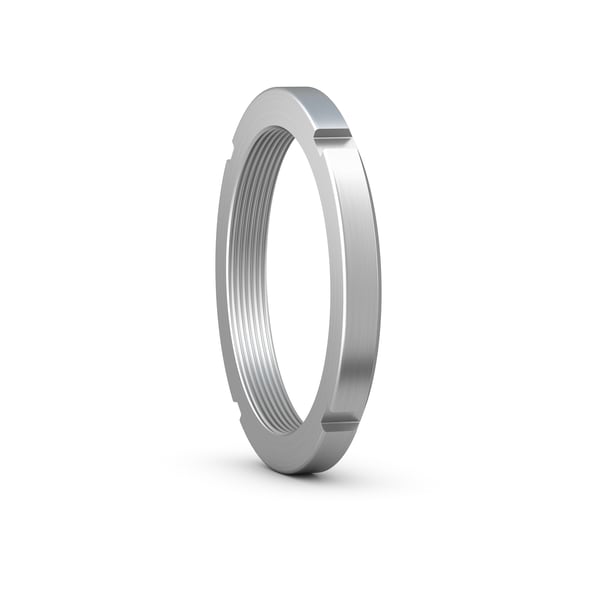

SKF AN 26
Lock nut with inch thread, for locking by lock washer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
129.692 mm
Thread diameter
d1
157.175 mm
Diameter locating side face
d3
171.577 mm
Outside diameter
B
22.479 mm
Width
b
15.494 mm
Width locating slot
h
6.604 mm
Depth locating slot
mass
1.41 kg
Product net weight
