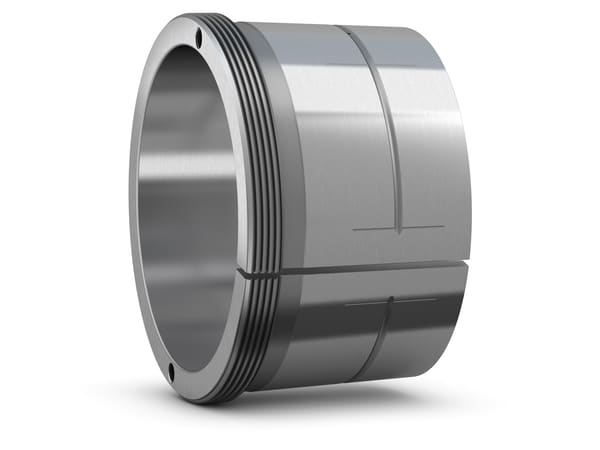

SKF AOH 24060 G
Withdrawal sleeve, for oil injection, ISO standards
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
280.0 mm
Bore diameter
d
300.0 mm
Outside diameter small taper
B1
184.0 mm
Width
B2
202.0 mm
Width sleeve and bearing before sleeve is driven into bore
G
Tr 320x5
Thread
G1
24.0 mm
Length thread
G2
G 1/8
Thread oil supply duct
G3
12.0 mm
Length of connecting thread for oil supply
A
6.5 mm
Distance bore - oil supply duct
mass
14.8 kg
Product net weight
