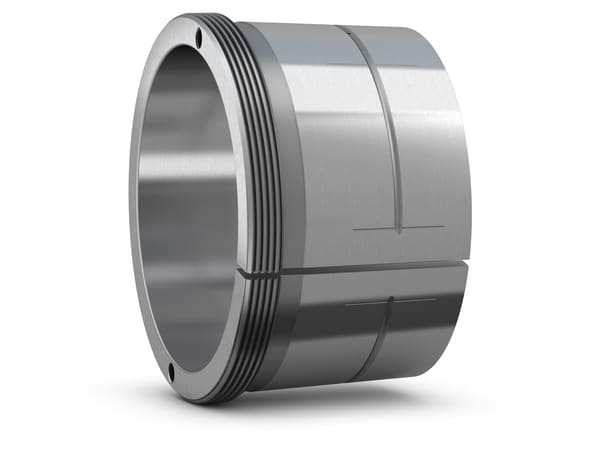

SKF AOH 24168
Withdrawal sleeve, for oil injection, ISO standards
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
320.0 mm
Bore diameter
d
340.0 mm
Outside diameter small taper
B1
269.0 mm
Width
B2
288.0 mm
Width sleeve and bearing before sleeve is driven into bore
G
Tr 360x5
Thread
G1
26.0 mm
Length thread
G2
G 1/4
Thread oil supply duct
G3
15.0 mm
Length of connecting thread for oil supply
A
9.0 mm
Distance bore - oil supply duct
mass
25.6 kg
Product net weight
