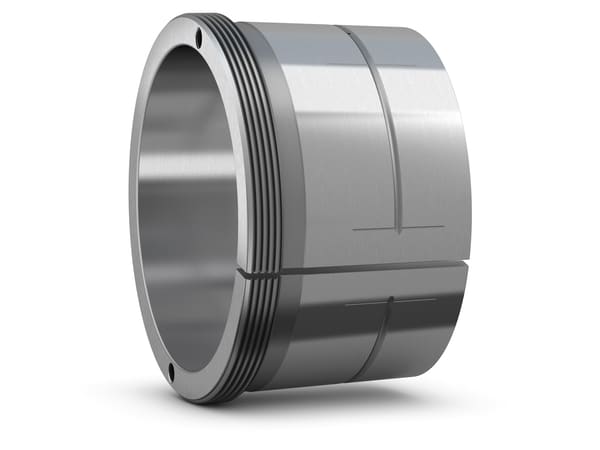

SKF AOH 3156 G
Withdrawal sleeve, for oil injection, ISO standards
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
260.0 mm
Bore diameter
d
280.0 mm
Outside diameter small taper
B1
175.0 mm
Width
B2
183.0 mm
Width sleeve and bearing before sleeve is driven into bore
G
Tr 300x4
Thread
G1
28.0 mm
Length thread
G2
G 1/4
Thread oil supply duct
G3
15.0 mm
Length of connecting thread for oil supply
A
9.0 mm
Distance bore - oil supply duct
mass
17.1 kg
Product net weight
