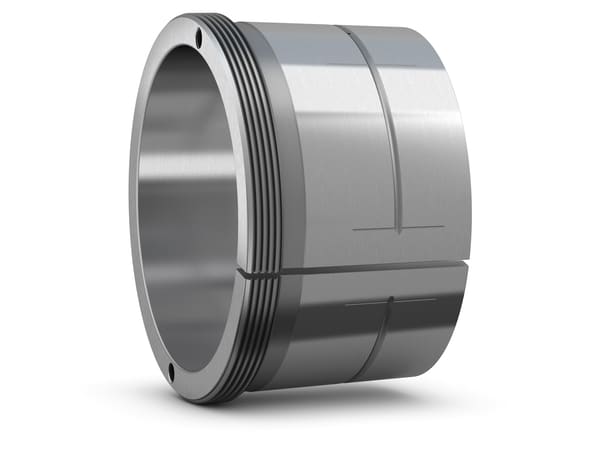

SKF AOHX 3088 G
Withdrawal sleeve, for oil injection, ISO standards
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
420.0 mm
Bore diameter
d
440.0 mm
Outside diameter small taper
B1
194.0 mm
Width
B2
205.0 mm
Width sleeve and bearing before sleeve is driven into bore
G
Tr 460x5
Thread
G1
35.0 mm
Length thread
G2
G 1/4
Thread oil supply duct
G3
15.0 mm
Length of connecting thread for oil supply
A
9.0 mm
Distance bore - oil supply duct
mass
30.8 kg
Product net weight
