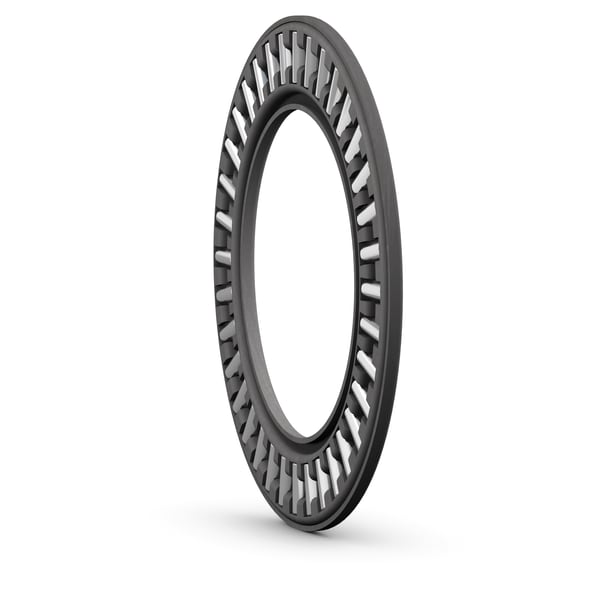

SKF AXW 12
Needle roller thrust bearing with centring flange, single direction
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
12.0 mm
Bore diameter
D
29.0 mm
Outside diameter
Dw
2.0 mm
Diameter roller
Ea
14.0 mm
Raceway diameter (min.) roller and cage thrust assembly
Eb
25.0 mm
Raceway diameter (max.) roller and cage thrust assembly
D1
16.0 mm
Outsider diameter centring flange
B
3.2 mm
Height without centring flange
B1
3.0 mm
Height centring flange
mass
0.0091 kg
Product net weight
