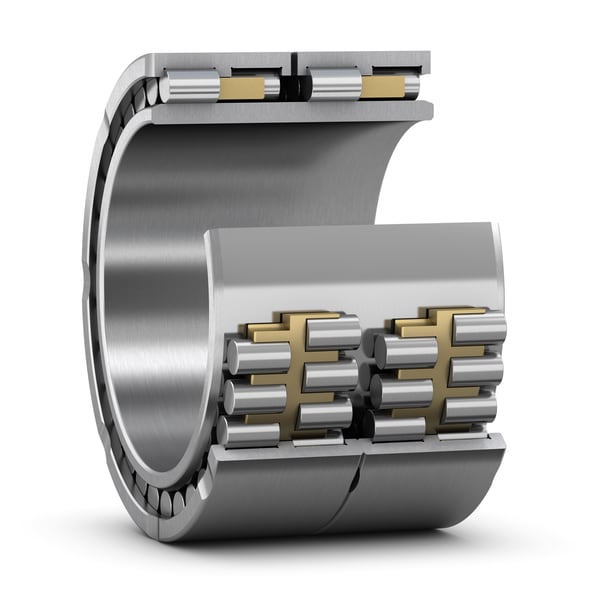

SKF BC4-0095
Four-row cylindrical roller bearing, for long products
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
200.0 mm
Bore diameter
D
280.0 mm
Outside diameter
B
170.0 mm
Total bearing width over inner ring(s)
C
170.0 mm
Total bearing width over outer ring(s)
D1
251.5 mm
Outer ring shoulder diameter
F
222.0 mm
Raceway diameter inner ring
r1,2
2.1 mm
Corner radius/chamfer inner ring
r3,4
2.1 mm
Chamfer dimension on the outer ring
s
2.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
mass
33.4 kg
Product net weight
