SKF BD1B 351890 A

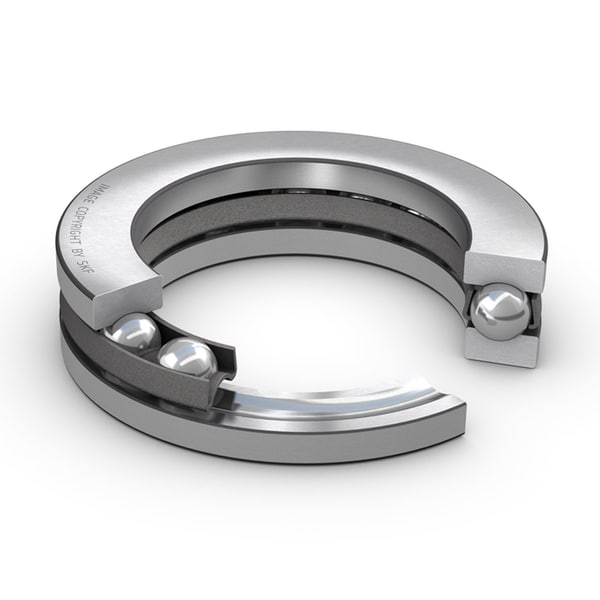

Single direction thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
1380.0 mm
Bore diameter
D
1535.0 mm
Outside diameter shaft washer (inner ring of thrust bearing)
H
130.0 mm
Height
d1
1535.0 mm
Outside diameter shaft washer
D1
1385.0 mm
Inner diameter housing washer
r1,2
5.0 mm
Chamfer dimension washer
mass
310.0 kg
Product net weight
