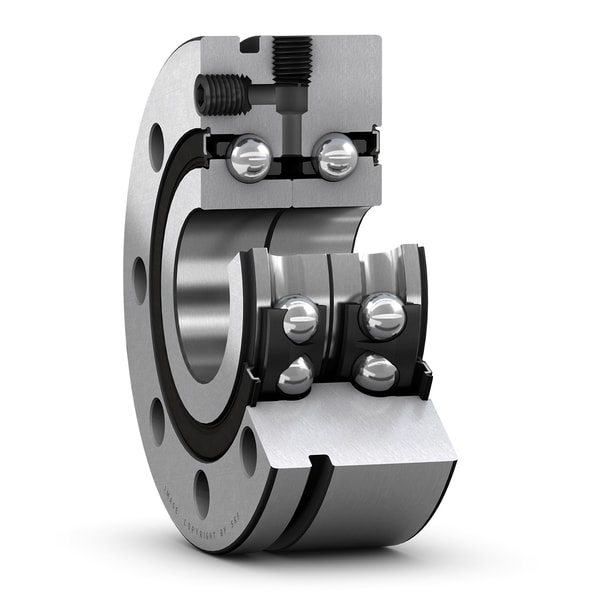

SKF BEAM 035090 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
35.0 mm
Bore diameter
D
90.0 mm
Outside diameter
H
34.0 mm
Height
d2
49.2 mm
Inner ring recess diameter
D2
62.7 mm
Outer ring recess diameter
H1
25.0 mm
Extraction groove position
r1,2
0.3 mm
Chamfer radius
r3,4
0.6 mm
Chamfer radius
a
105.0 mm
Distance pressure points
J
75.0 mm
Pitch diameter of holes for bolts
N
8.8 mm
Through hole for attachment bolts
mass
1.13 kg
Product net weight
Abutment dimensions
da
45.0 mm
Abutment diameter shaft
Da
62.0 mm
Abutment diameter housing
ra
0.3 mm
Fillet radius
