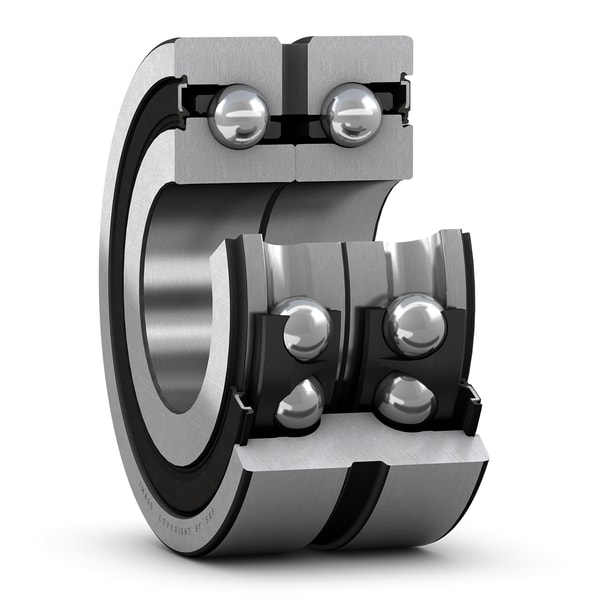

SKF BEAS 017047 C-2RSH
Super-precision double direction angular contact thrust ball bearing for screw drives
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
17.0 mm
Bore diameter
D
47.0 mm
Outside diameter
H
25.0 mm
Height
d2
28.7 mm
Inner ring recess diameter
D2
38.1 mm
Outer ring recess diameter
b
4.2 mm
Width of annular groove
K
3.0 mm
Diameter of lubrication hole
r1,2
0.3 mm
Chamfer radius
r3,4
0.6 mm
Chamfer radius
a
65.0 mm
Distance pressure points
mass
0.236 kg
Product net weight
Abutment dimensions
da
23.0 mm
Abutment diameter shaft
Da
37.0 mm
Abutment diameter housing
ra
0.3 mm
Fillet radius
rb
0.6 mm
Fillet radius
