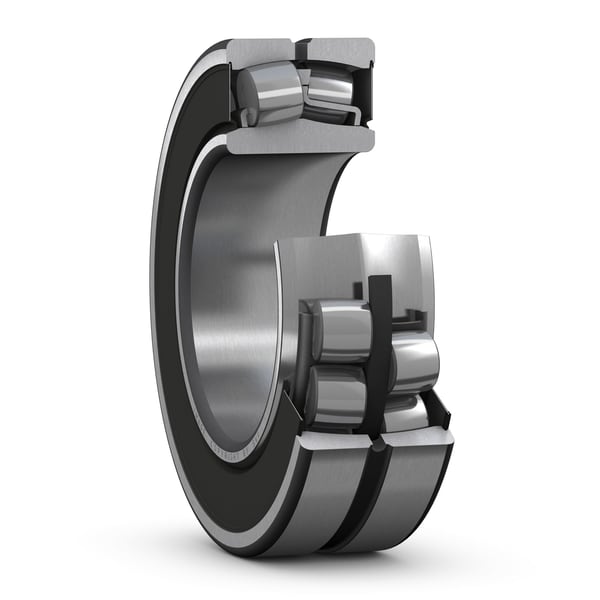

SKF BS2-2205-2RS/VT143
Spherical roller bearing with integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
25.0 mm
Bore diameter
D
52.0 mm
Outside diameter
B
23.0 mm
Width
d2
30.0 mm
Shoulder diameter of inner ring
D1
46.6 mm
Shoulder/recess diameter of outer ring
b
4.4 mm
Width of lubrication groove
K
2.0 mm
Diameter of lubrication hole
r1,2
1.0 mm
Chamfer dimension
mass
0.206 kg
Product net weight
