SKF BS2-2214-2RSK/VT143

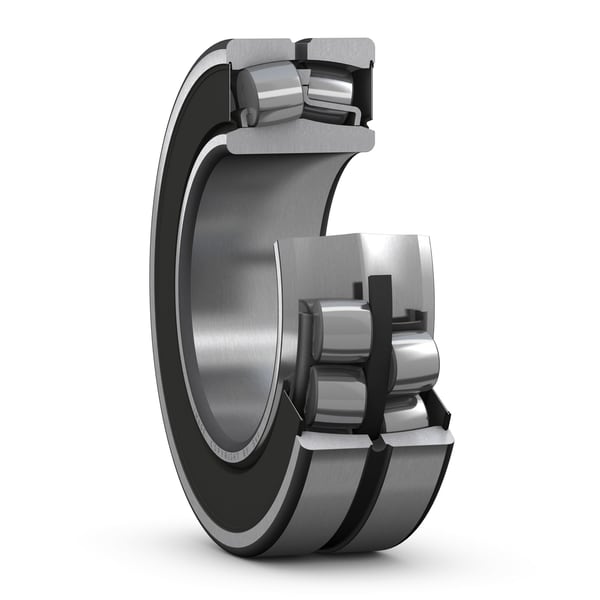

Spherical roller bearing with tapered bore, integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
70.0 mm
Bore diameter
D
125.0 mm
Outside diameter
B
38.0 mm
Width
d2
80.1 mm
Shoulder diameter of inner ring
D1
116.0 mm
Shoulder/recess diameter of outer ring
b
6.0 mm
Width of lubrication groove
K
3.0 mm
Diameter of lubrication hole
r1,2
1.5 mm
Chamfer dimension
mass
1.8 kg
Product net weight
