SKF BS2-2215-2RS/VT143

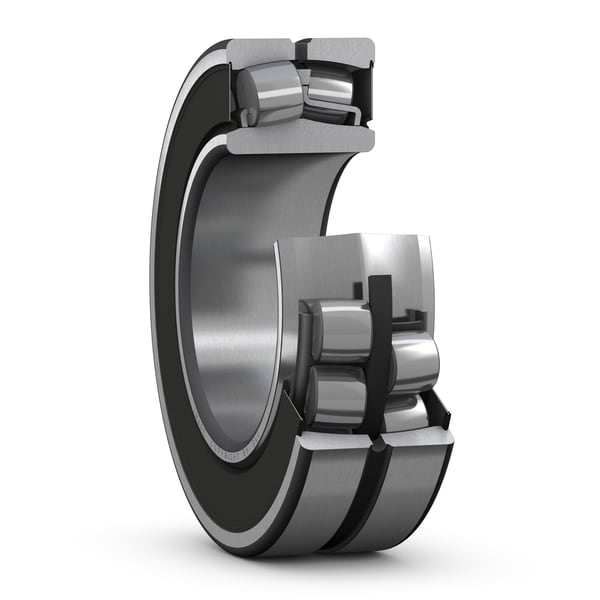

Spherical roller bearing with integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
75.0 mm
Bore diameter
D
130.0 mm
Outside diameter
B
38.0 mm
Width
d2
84.5 mm
Shoulder diameter of inner ring
D1
120.0 mm
Shoulder/recess diameter of outer ring
b
6.0 mm
Width of lubrication groove
K
3.0 mm
Diameter of lubrication hole
r1,2
1.5 mm
Chamfer dimension
mass
1.93 kg
Product net weight
