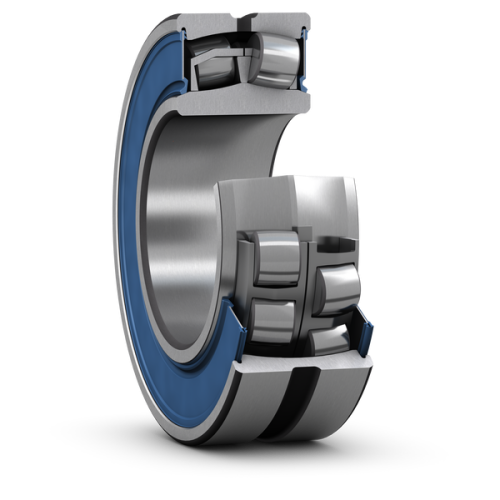

SKF BS2-2216-2RS/GFP9VA944
SKF Food line spherical roller bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
80.0 mm
Bore diameter
D
140.0 mm
Outside diameter
B
40.0 mm
Width
d2
91.7 mm
Shoulder diameter of inner ring
D1
129.0 mm
Shoulder/recess diameter of outer ring
b
6.0 mm
Width of lubrication groove
K
3.0 mm
Diameter of lubrication hole
r1,2
2.0 mm
Chamfer dimension
mass
2.4 kg
Product net weight
