SKF BS2-2218-2RS/VT143

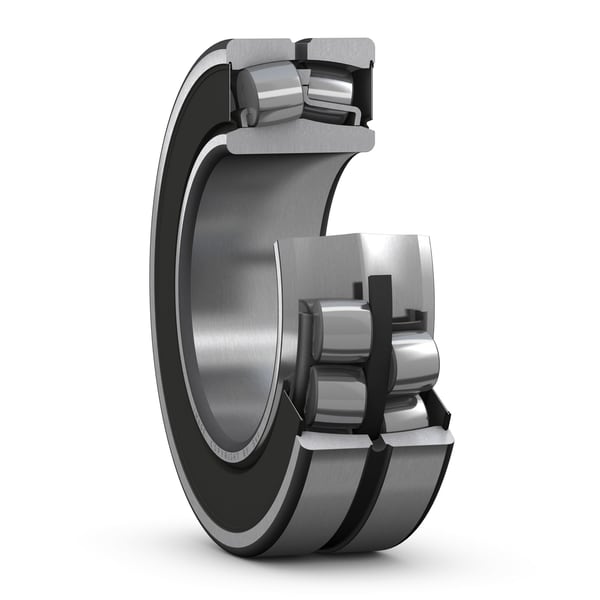

Spherical roller bearing with integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
90.0 mm
Bore diameter
D
160.0 mm
Outside diameter
B
48.0 mm
Width
d2
102.0 mm
Shoulder diameter of inner ring
D1
146.0 mm
Shoulder/recess diameter of outer ring
b
6.0 mm
Width of lubrication groove
K
3.0 mm
Diameter of lubrication hole
r1,2
2.0 mm
Chamfer dimension
mass
3.85 kg
Product net weight
