SKF BS2-2319-2RS5K/VT143

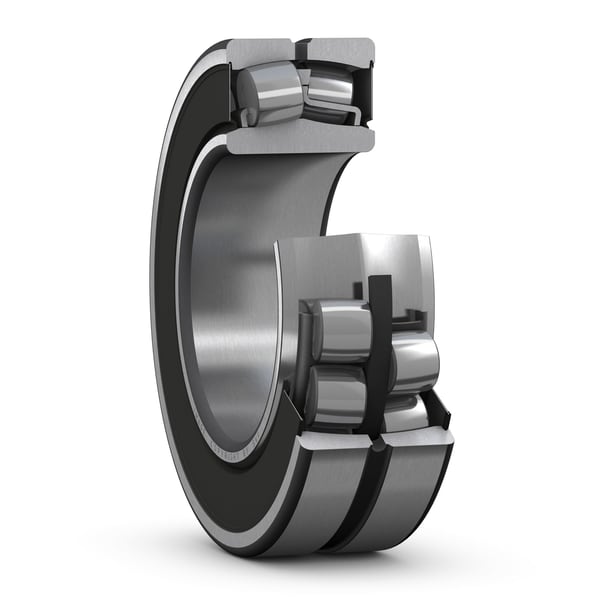

Spherical roller bearing with tapered bore, integral sealing and relubrication features
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
95.0 mm
Bore diameter
D
200.0 mm
Outside diameter
B
77.0 mm
Width
d2
114.0 mm
Shoulder diameter of inner ring
D1
173.0 mm
Shoulder/recess diameter of outer ring
b
11.1 mm
Width of lubrication groove
K
6.0 mm
Diameter of lubrication hole
r1,2
3.0 mm
Chamfer dimension
mass
10.9 kg
Product net weight
