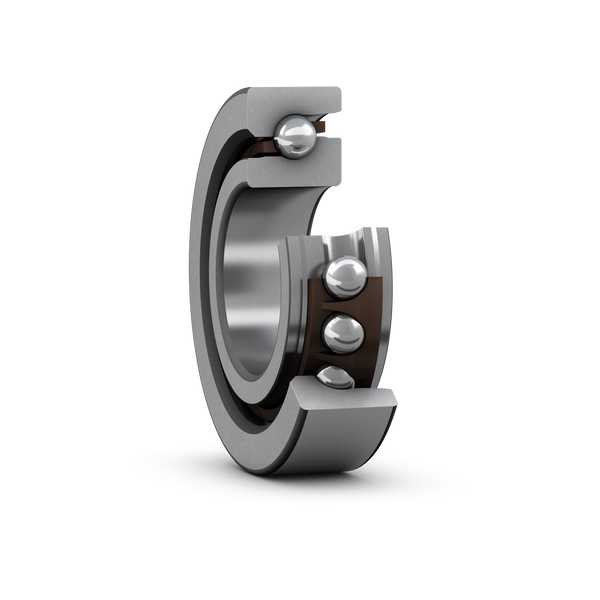

SKF BSA 204 CGA
Super-precision single direction angular contact thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.0 mm
Bore diameter
D
47.0 mm
Outside diameter
H
14.0 mm
Height
d1
29.42 mm
Shoulder diameter
d2
34.5 mm
Shoulder diameter
D1
29.1 mm
Shoulder/recess diameter
D2
40.65 mm
Shoulder/recess diameter
r1,2
1.0 mm
Chamfer dimension
a
40.0 mm
Distance to pressure point
mass
0.11 kg
Product net weight
Abutment dimensions
da
24.0 mm
Diameter of shaft abutment
db
24.0 mm
Diameter of shaft abutment
Da
42.0 mm
Diameter of housing abutment
Db
42.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of housing fillet
