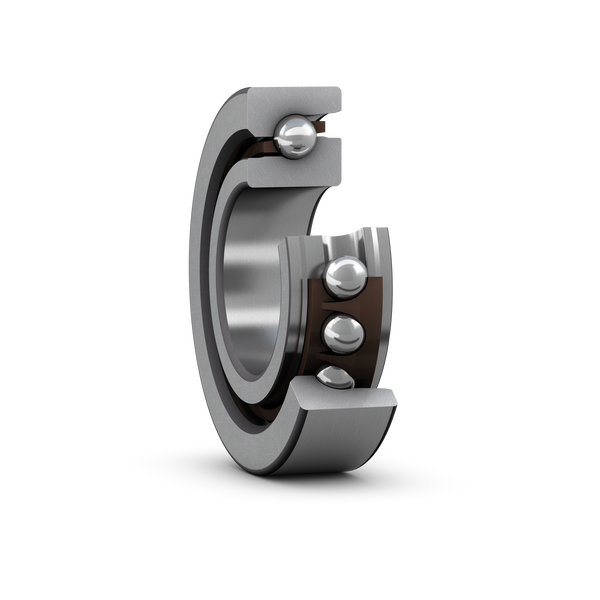

SKF BSA 205 CGA
Super-precision single direction angular contact thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
25.0 mm
Bore diameter
D
52.0 mm
Outside diameter
H
15.0 mm
Height
d1
33.45 mm
Shoulder diameter
d2
38.5 mm
Shoulder diameter
D1
38.6 mm
Shoulder/recess diameter
D2
44.64 mm
Shoulder/recess diameter
r1,2
1.0 mm
Chamfer dimension
a
44.0 mm
Distance to pressure point
mass
0.146 kg
Product net weight
Abutment dimensions
da
32.0 mm
Diameter of shaft abutment
db
32.0 mm
Diameter of shaft abutment
Da
47.5 mm
Diameter of housing abutment
Db
47.5 mm
Diameter of housing abutment
ra
1.0 mm
Radius of housing fillet
