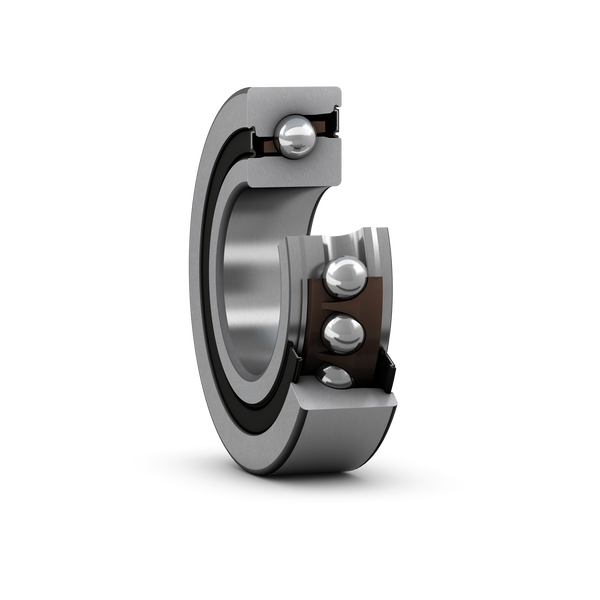

SKF BSD 3062 CGA-2RS1
Super-precision sealed single direction angular contact thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
D
62.0 mm
Outside diameter
H
15.0 mm
Height
d1
39.9 mm
Shoulder diameter
d2
46.0 mm
Shoulder diameter
D1
48.8 mm
Shoulder/recess diameter
D2
55.3 mm
Shoulder/recess diameter
r1,2
1.0 mm
Chamfer dimension
a
51.0 mm
Distance to pressure point
mass
0.211 kg
Product net weight
Abutment dimensions
da
38.0 mm
Diameter of shaft abutment
db
38.0 mm
Diameter of shaft abutment
Da
57.0 mm
Diameter of housing abutment
Db
57.0 mm
Diameter of housing abutment
ra
1.0 mm
Radius of housing fillet
