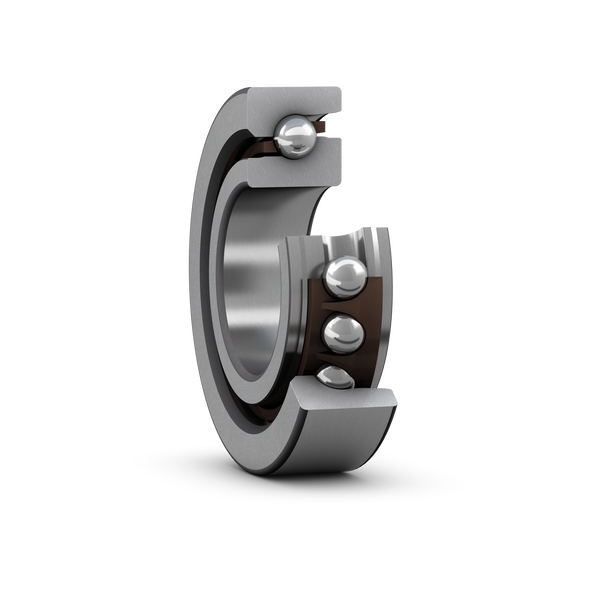

SKF BSD 45100 CGB
Super-precision single direction angular contact thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.0 mm
Bore diameter
D
100.0 mm
Outside diameter
H
20.0 mm
Height
d1
61.7 mm
Shoulder diameter
d2
71.5 mm
Shoulder diameter
D1
71.6 mm
Shoulder/recess diameter
D2
82.27 mm
Shoulder/recess diameter
r1,2
1.5 mm
Chamfer dimension
a
77.0 mm
Distance to pressure point
mass
0.791 kg
Product net weight
Abutment dimensions
da
59.0 mm
Diameter of shaft abutment
db
59.0 mm
Diameter of shaft abutment
Da
90.0 mm
Diameter of housing abutment
Db
90.0 mm
Diameter of housing abutment
ra
1.5 mm
Radius of housing fillet
