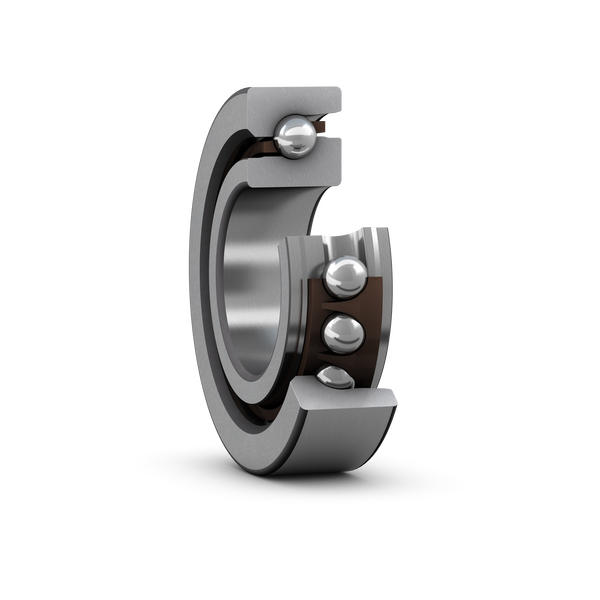

SKF BSD 50100 CGB
Super-precision single direction angular contact thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
D
100.0 mm
Outside diameter
H
20.0 mm
Height
d1
66.9 mm
Shoulder diameter
d2
77.0 mm
Shoulder diameter
D1
77.1 mm
Shoulder/recess diameter
D2
87.76 mm
Shoulder/recess diameter
r1,2
1.5 mm
Chamfer dimension
a
82.0 mm
Distance to pressure point
mass
0.71 kg
Product net weight
Abutment dimensions
da
65.0 mm
Diameter of shaft abutment
db
65.0 mm
Diameter of shaft abutment
Da
90.5 mm
Diameter of housing abutment
Db
90.5 mm
Diameter of housing abutment
ra
1.5 mm
Radius of housing fillet
