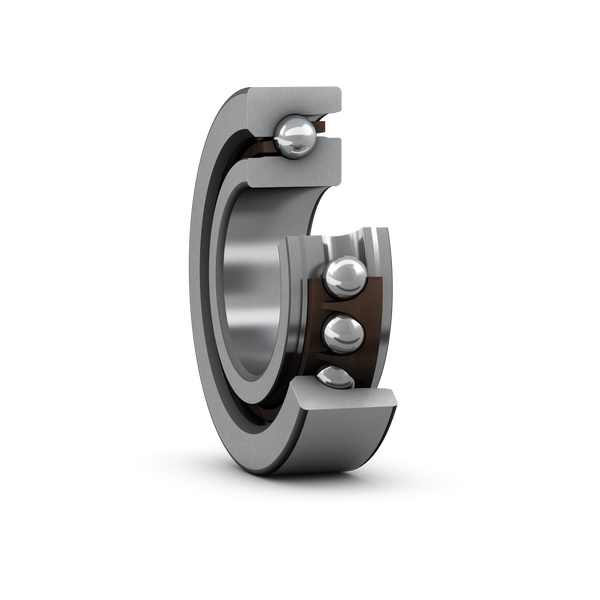

SKF BSD 60120 CGA
Super-precision single direction angular contact thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
D
120.0 mm
Outside diameter
H
20.0 mm
Height
d1
80.9 mm
Shoulder diameter
d2
91.0 mm
Shoulder diameter
D1
91.1 mm
Shoulder/recess diameter
D2
101.74 mm
Shoulder/recess diameter
r1,2
1.5 mm
Chamfer dimension
a
96.0 mm
Distance to pressure point
mass
1.09 kg
Product net weight
Abutment dimensions
da
73.0 mm
Diameter of shaft abutment
db
73.0 mm
Diameter of shaft abutment
Da
111.0 mm
Diameter of housing abutment
Db
111.0 mm
Diameter of housing abutment
ra
1.5 mm
Radius of housing fillet
