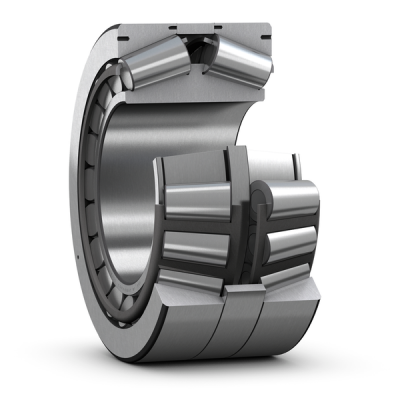

SKF BT2-8164/HA4
Double row tapered roller bearing, TDI design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
690.0 mm
Bore diameter
D
980.0 mm
Outside diameter
T
355.0 mm
Total width
B
355.0 mm
Width of inner ring
d1
745.0 mm
Shoulder diameter of inner ring (small side face)
D1
852.358 mm
Raceway diameter of outer ring (small side face)
r1,2
6.0 mm
Chamfer dimension of inner ring
r3,4
6.0 mm
Chamfer dimension of outer ring
mass
890.0 kg
Product net weight
