SKF BT2B 332662/HB1

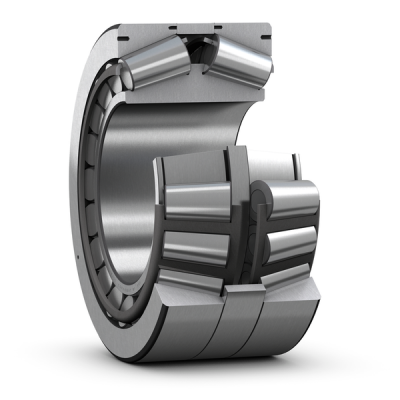

Double row tapered roller bearing, TDI design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
519.113 mm
Bore diameter
D
736.6 mm
Outside diameter
T
258.762 mm
Total width
B
258.762 mm
Width of inner ring
d1
568.3 mm
Shoulder diameter of inner ring (small side face)
D1
652.623 mm
Raceway diameter of outer ring (small side face)
r1,2
3.3 mm
Chamfer dimension of inner ring
r3,4
6.4 mm
Chamfer dimension of outer ring
mass
370.0 kg
Product net weight
