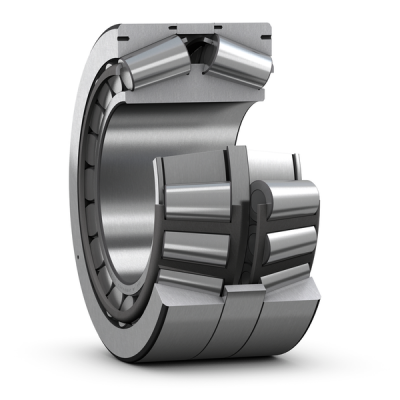

SKF BT2B 334113/HA3VA901
Double row tapered roller bearing, TDI design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
445.0 mm
Bore diameter
D
620.0 mm
Outside diameter
T
180.0 mm
Total width
B
180.0 mm
Width of inner ring
b
51.3 mm
Inner ring locating slot width
h
20.0 mm
Inner ring locating slot depth
r1,2
2.0 mm
Chamfer dimension of inner ring
r3,4
5.0 mm
Chamfer dimension of outer ring
mass
160.0 kg
Product net weight
